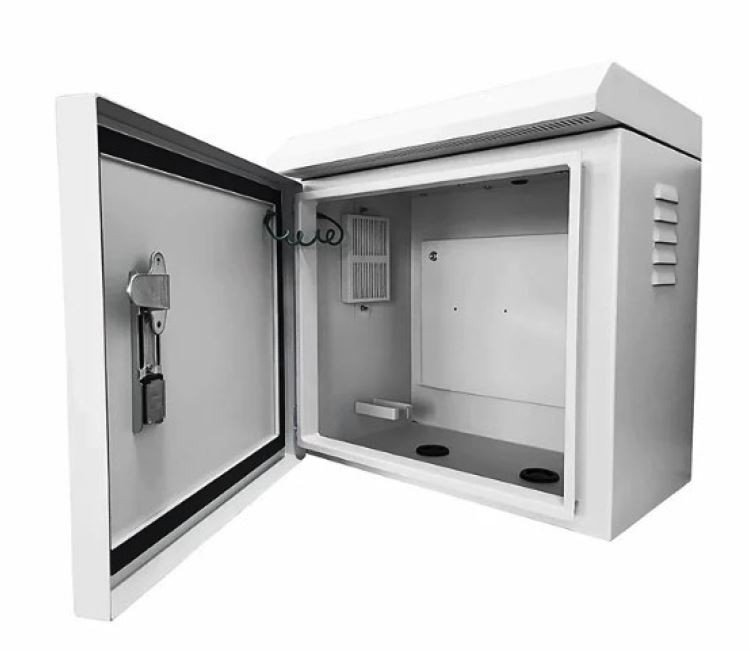

Outdoor Cabinet Type S
Hanging cabinet type for outdoor, suitable for CCTV system.
Order Information
Outdoor Cabinet NVOC-003 35 x 41 x 42 (WxHxD)
Feature
– Hanging cabinet type for outdoor, suitable for CCTV system and fiber optic distribution
– Produced from Electro Galvanized sheet steel with thickness of 1.5mm, Light weight and completed rust proof.
– Light gray two-tone color by electrostatic powder coating paint.
– Provide build-in push handle lock at front door.
– Water-proof and ventilation by roofer at side panels. (IP55)
– Supporting by double steel bar with thickness of 2.0mm. at back side.
– Roof cover can be mounted with single of 4 inch ventilating fan to release the accumulated heat inside the cabinet and extend the life of equipment.
– Side panels and roof over are water proof by rubber seal.
– Provide 3 knock out holes size 3/4 inch and 1 inch for cable entry.
– Provide cable guide inside the cabinet for manages all the cables.
– Provide removable component plate with thickness 1.5mm. and stud. Plate can remove out from the cabinet for convenient to install the equipment.
– With stud, plate can be containing double splice tray and 1ea. Of 4 outlets power distributions.
– Provide ground wire connecting between structure cabinet and front door.
– Support screen Logo, Number, etc.
– ISO:9001:2008 , ISO:14001:2004
Related products
-
-
-

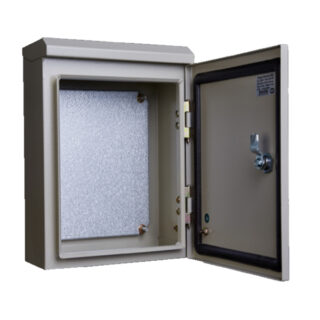

Outdoor Cabinet Type 1
- Produced from Electro Galvanized sheet steel with thickness of 1mm, Light weight and completed rust proof.
- Light gray two-tone color by Epoxy polyester coating paint.
- Provide build-in push handle lock at front door.
- Water-proof and ventilation by roofer at side panels. (IP55)
- Supporting by double steel bar with thickness of 2.0mm. at back side.
- Roof cover can be mounted with single of 4 inch ventilating fan to release the accumulated heat inside the cabinet and extend the life of equipment.
- Side panels and roof over are water proof by rubber seal.
- Provide 3 knock out holes size 3/4 inch and 1 inch for cable entry.
- Provide cable guide inside the cabinet for manages all the cables.
- Provide removable component plate with thickness 1.5mm. and stud. Plate can remove out from the cabinet for convenient to install the equipment.
- With stud, plate can be containing double splice tray and 1ea. Of 4 outlets power distributions.
- Provide ground wire connecting between structure cabinet and front door.
- Support screen Logo, Number, etc.
- ISO 9001:2015 , ISO 14001:2015
